Ceram research color standards

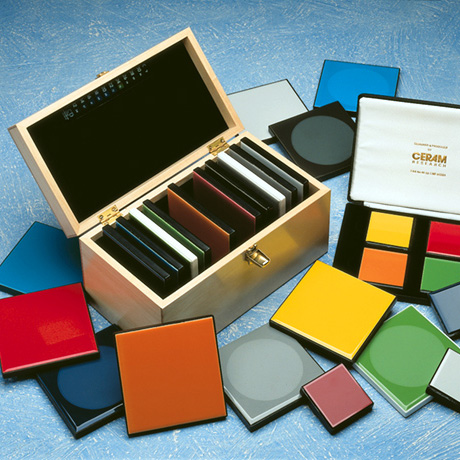

CERAM Research Ceramics Standards, also known as BCRA Series II tiles, are the accepted color standards in North America and throughout the world. These standards can be used to calibrate spectrometers and spectrophotometers in both hemispherical and in directional geometry. Avian Technologies BCRA sets consist of fourteen 2" tiles (the standard BCRA set plus a black and a white tile), mounted and sealed to prevent effects of humidity. Standards come in a wooden box with a desiccant.

The CERAM standards are available in two directional calibrations and in an un­calibrated set.

Individual color standards

It is sometimes practical to assure that a spectrometer stays within calibration without running a complete calibration with the full set of color standards. The use of a single color standard can often provide a practical color calibration point. It has been determined that the best tile within the BCRA Series II set for a single calibration point is the cyan tile. This tile, either calibrated or uncalibrated, is made to the same specifications as the com­plete set described above.

Other tiles, depending upon the color wanted, may be available upon request.

Avian color tile sets

Avian Technologies, in part­nership with Mt. Baker Research, has developed a complete line of ceramic color transfer standards. These tiles are described here, and full spectra response data is available. Request such from Ancal.

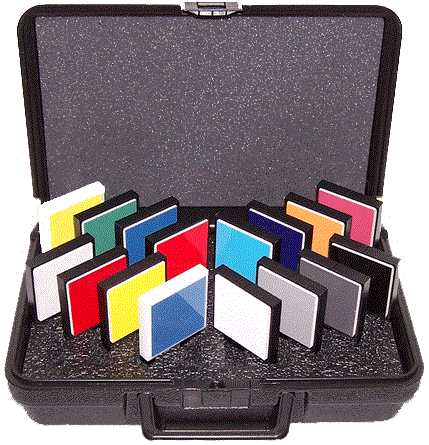

The Avian sets include (A.) the basic set shown to the left, (B.) the Grey Scale and Pastel colors set and (C.) the special colors set.

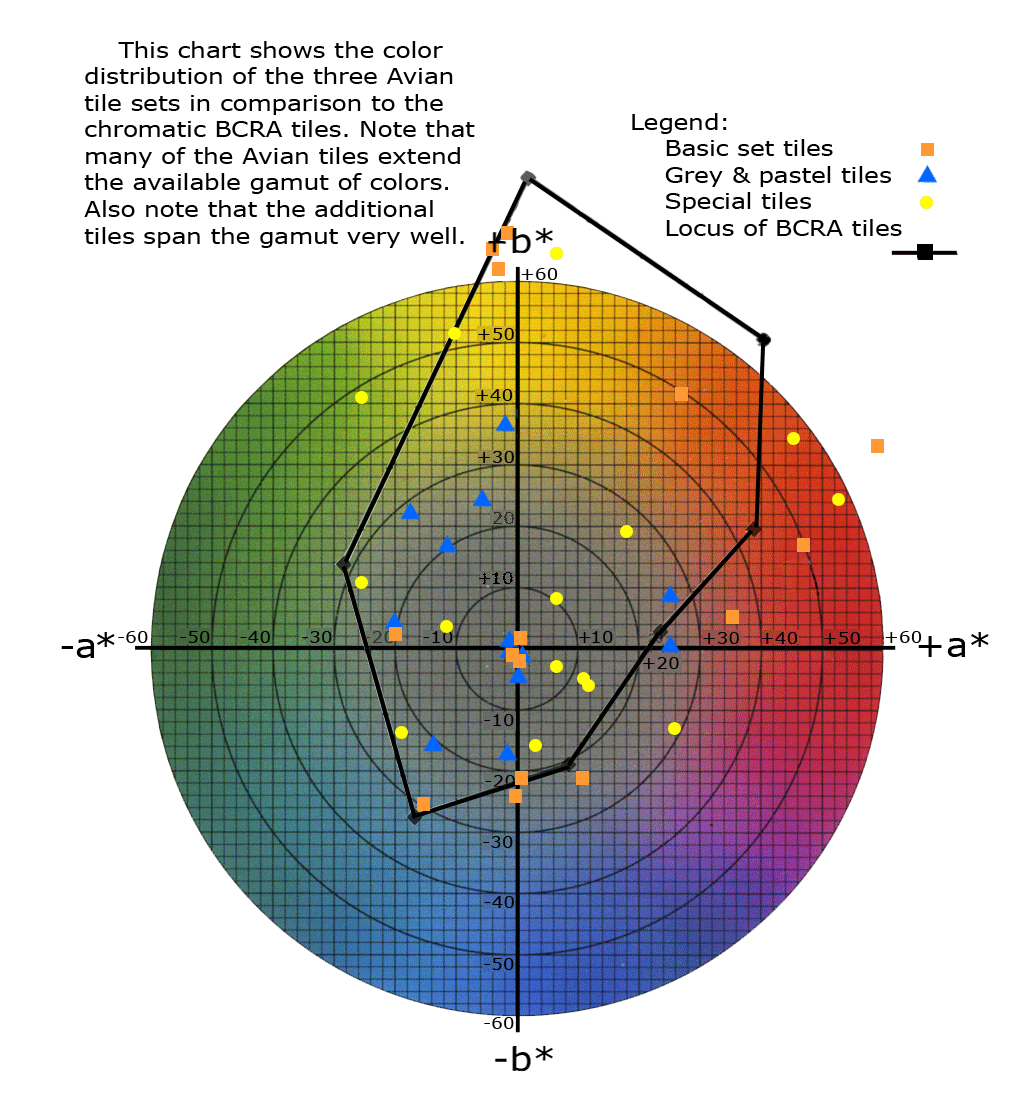

This chart shows the color distribution of the three Avian tile sets in comparison to the chromatic BCRA tiles.

This chart shows the color distribution of the three Avian tile sets in comparison to the chromatic BCRA tiles. Note that many of the Avian tiles extend the available gamut of colors. Also note that the additional tiles span the gamut very well.

Avian gold standards and targets

Diffuse gold is an excellent standard for wavelengths from above 850 nm to >15 µm. Avian Gold offers high diffuse reflectance of > 94% from 1000 nm to well into the mid-infrared.

Both standards and targets are avail­able from Avian, either calibrated or uncalibrated, ranging from 2" square to 10" square.

Custom sizes of targets are available upon request.

Russian opal glass standards

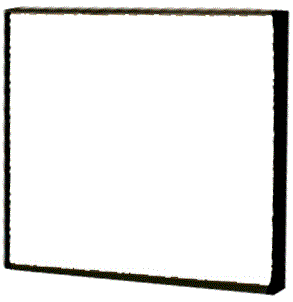

Russian Opal Glass MC-20 is useful as a durable white standard in the vis­ible and near infrared. Although used both in its glossy form and in matt form, it is primarily used in its glossy form. The glossy Russian opal is easily cleaned and quite stable. Rus­sian Opal is the preferred standard for direction/directional geometry such as 0/45 or for multi-angle spectros­copy. It is also useful as a standard for hemispherical measurements.

Glossy Russian opal standards are available as 2" (50.8 mm) squares in a black holder and a wooden box for protection. Larger sizes (up to 90 mm square) are available by special order.


Opal Glass p/n MROG-02C

Avian Technologies has a highly matte Russian Opal Glass standard. The standard has gloss levels of <0.2 units at 60°. The material also offers excellent re­flectance properties far into the NIR. This standard has found great usage in the paper industry.

It is available in a single configu­ration. The active area of this stan­dard is 50 mm diameter, mounted in a Delrin holder with cover.

See also the Standard Whites on the Reflectance Standards page in the Accessories Section.

Reflectance Wavelength Calibration Standards

Rare Earth Oxide Standards are for the calibration of UV-Vis-NIR spec­trometers and spectrophotometers. These wavelength calibration stan­dards display sharp absorbance peaks over much of the UV-Vis-NIR spectral range. The mixture of rare earth oxides are chosen to give the best coverage over the wavelength range of interest. UV-Vis and Vis-NIR standards are available both in regular sizes and in custom sizes and configurations.

UV-Vis Calibration Standards are a mixture of holmium and erbium oxides in an inert, durable, spectrally neutral matrix. The UV-Vis stan­dards are traceable to the National Research Council Canada and NIST. Available in 1.25" (37 mm) and 2" (50.8 mm) diameter sizes in a Del­rin™ holder with cover. These standards are ideal for calibration of UV-Vis spectrophotometers. They are calibrated from 250-850 nm.

Near Infrared Calibration Standards are a mixture of dysprosium, holmium, and samarium oxides in an inert, durable, spectrally neutral matrix. These Avian Technologies wavelength calibration standards are traceable to the National Research Council Canada and NIST. They are available in 1.25" (37 mm) and 2" (50.8") diameter sizes in a DelrinTM holder with cover.

In addition to these standards, there are similar highly purified powder standards in hermetically sealed 1.5 inch (37 mm) dia anodized aluminum holders with optical glass windows in accord with NIST SRM-1920a.

Prices

Uncalibrated Standards
BCRA-GS10-G-02u Lucideon BCRA Grey Scale Tile Set, 10 2" Tiles, Gloss Finish $2,800
BCRA-GS10-M-02u Lucideon BCRA Grey Scale Tile Set, 10 2" Tiles, Matte Finish 3,000
BCRA-GS10-G-04u Lucideon BCRA Grey Scale Tile Set, 10 4" Tiles, Gloss Finish 3,200
BCRA-GS10-M-04u Lucideon BCRA Grey Scale Tile Set, 10 4" Tiles, Matte Finish 3,700
BCRA-G-WH-02u Lucideon BCRA Individual White 2" Glossy standard 360
BCRA-M-WH-02u Lucideon BCRA Individual White 2" Matte standard 420
BCRA-G-BK-02u Lucideon BCRA Individual Black 2" Glossy standard 360
BCRA-M-BK-02u Lucideon BCRA Individual Black 2" Matte standard 420
BCRA-G-BK-04u Lucideon BCRA Individual Black 4" Glossy standard 500
BCRA-M-BK-04u Lucideon BCRA Individual Black 4" Matte standard 540
BCRA-G-WH-04u Lucideon BCRA Individual White 4" Glossy standard 500
BCRA-M-WH-04u Lucideon BCRA Individual White 4" Matte standard 540
AluWhite98-02(m)-U AluWhite Matte Reflectance Standard • High reflectance alumina ceramic, 2" square mounted in Delrin holder $330
AluWhite98-02(g)-U AluWhite Glossy Reflectance Standard • High reflectance alumina ceramic, 2" square mounted in Delrin holder 360
AluWhite98-015(m)-U AluWhite Matte Reflectance Standard • High reflectance alumina ceramic, 1.5" diameter 275
AluWhite98-015(g)-U AluWhite Glossy Reflectance Standard • High reflectance alumina ceramic, 1.5" diameter 285
Calibrated standards
AluWhite98-02(m)-c AluWhite Matte Reflectance Standard • High reflectance alumina ceramic, 2" square mounted in Delrin holder $480
AluWhite98-02(g)-c AluWhite Glossy Reflectance Standard • High reflectance alumina ceramic, 2" square mounted in Delrin holder 510
AluWhite98-015(m)-c AluWhite Matte Reflectance Standard • High reflectance alumina ceramic, 1.5" diameter 425
AluWhite98-015(g)-c AluWhite Glossy Reflectance Standard • High reflectance alumina ceramic, 1.5" diameter 435

Prices are in US dollars - Prices subject to change without notice - Products are FOB Ancal, California

For prices of Calibrated BCRA Lucideon SETS, add the price of the uncalibrated set above to the price of the desired calibration type below:

For 8 degree hemispherical add $1,250
  For Angle 45:0 add $1,700
  For Angle 0:45 add $1,700

For prices of Calibrated individual BCRA Lucideon tiles, add the price of the uncalibrated tile to the price of the desired calibration type below:

For 8 degree hemispherical add $150
 For Angle 45:0 add $240
 For Angle 0:45 add $240

Order

To order, you may email an order to [email protected], you may fax Ancal an order to 602-532-7018, or use the form below.

As an authorized distributor of Avian Technologies products, Ancal can process orders for most items manufactured by Avian Technologies.

Please be aware that in some cases, such as in sales to new customers or on special items, pre-payment may be required.
