Reflection / backscatter probes

Optical fibers are integral components in most all Ocean Insights’ miniature fiber optic spectrometer system. Optical fiber technology makes possible in situ analyses, as it allows “taking the instru­ment to the sample.”

It is optical fiber technology that allows convenient sampling, whether it be in sample containers or in process lines. This concept provides users with a wide range of flexible approaches to analytical work.

Transmission dip probes

Trans­mission dip probes provide for measuring absorbance and trans­mission in solutions. These probes may be used for discreet measurements and for continuous online (process steams) providing real-time sample analyses and monitoring.

The probes use interchangeable tips that provide different pathlengths.

Reflection/Backscattering Probes

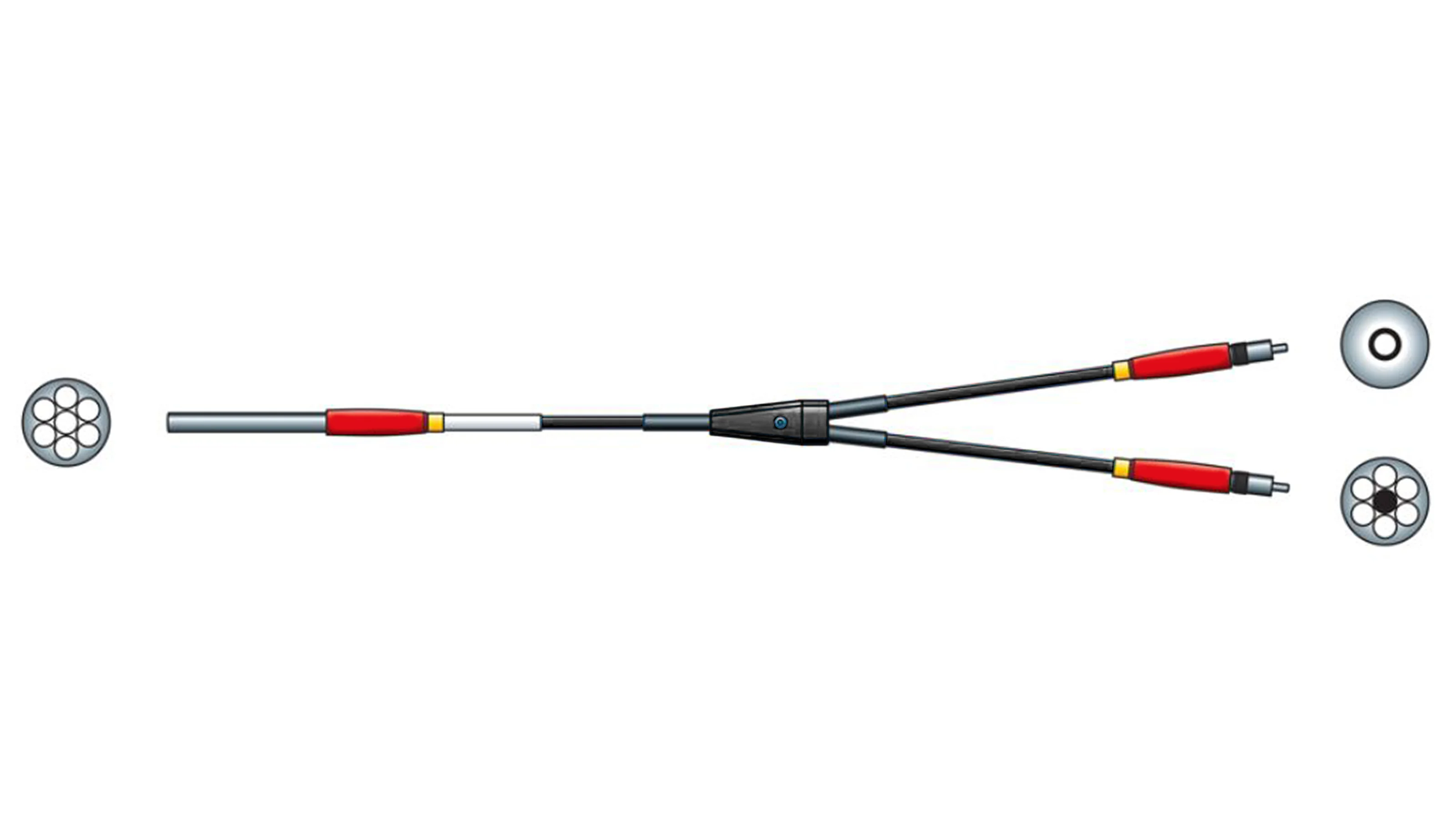

Fiber Optic Reflection / Backscattering Probes are used for measuring specular or diffuse reflectance from surfaces fluorescence from solids, or back­scatter­ing and fluorescence in solutions and powders. These Reflection / Backscattering Probes couple to fiber optic spectro­meters and light sources.

Reflection probes are available in 3 fiber sizes (200, 400 and 600 µm).

These probes can be optimized for the UV/VIS (250-800 nm) or VIS/NIR (400-2100 nm) or in a combination of both ranges.

Attenuated Total Reflectance Probe

The Attenuated Total Reflecton Probe is designed for measuring highly absorbent samples. The ATR Probe is especially suit­able for measurements of materials that have absorbance values in the 4000-5000 AU/cm range. The ATR Probe can be inserted directly into the sample solution and spectra can be taken without sample preparation or sample dilution. Typical applications involve measurements of raw inks, dyes and crude oil samples.

In addition, the ATR Probe can be used to measure film deposition probe if the refractive index (RI) of the material that is depositing on the probe in cases where the material being deposited on the probe tip is greater than the RI of the ATR’s sapphire crystal (greater than 1.7).

Analytical probes

There are many other specialized probes for various analytical work. A probe which is for use with a Raman spectrometer is available. This is further discussed in systems.

As is discussed in more detail in the pH and O2 application report, probes for measurements of pH and oxygen concentrations are available.

Also, probes for processes and on-line monitoring are available. Some probes are very robust to function in challenging environments.


Prices

Extreme Solarization Resistant Reflection/Backscatter Probes
QR230-7-XSR Premium 235 µm Refl. Probe, solarization-resistant, 2 m  $837.00
QR450-7-XSR Premium 455 µm Refl. Probe, solarization-resistant, 2 m 1,808.00
Solarization Resistant Reflection/Backscatter Probes

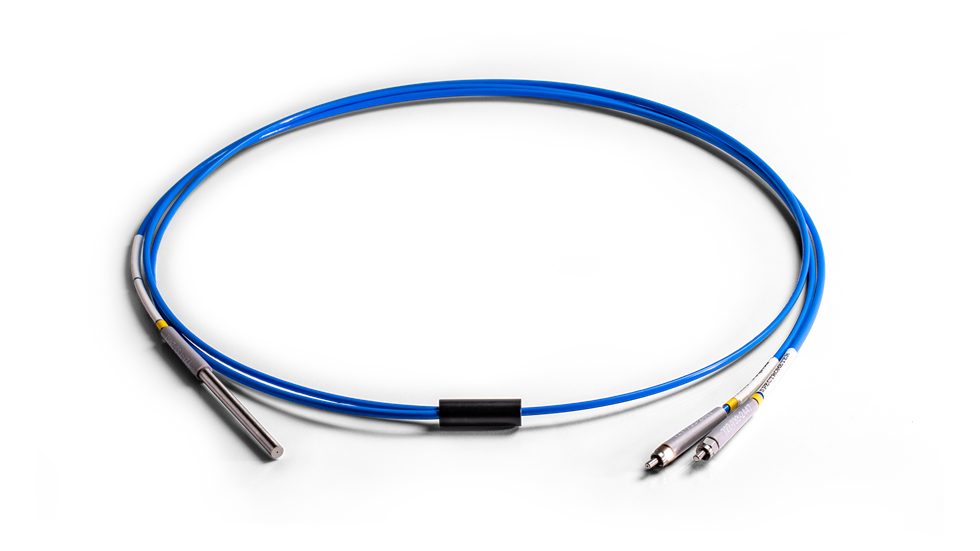

R200-7-SR 200 µm Reflection Probe, Solar resistant, 2 m  $599.00
R400-7-SR 400 µm Reflection Probe, solarization-resistant, 2 m 769.00
QR400-7-SR Premium 400 µm Refl. Probe, solarization-resistant, 2 m 976.00
QR400-7-SR-BX Premium 400 µm Reflection Probe, SR, 2 m, BX Jacket 999.00
R600-7-SR-125F 600 µm Reflection Probe, solariz.-resist., 1/8" ferrule 976.00
QR600-7-SR125BX Prem. 600 µm Refl. Probe, solariz.-res., 1/8" ferrule, BX 1,255.00
QR600-7-SR-125F Premium 600 µm Refl. Probe, solariz.-resist., 1/8" ferrule 1,255.00
UV-Visible Reflection/Backscatter Probes
R200-7-UV-VIS 200 µm Reflection Probe, UV/VIS, 2 m  $559.00
QR200-7-UV-BX Premium 200 µm Reflection Probe, UV/VIS, 2 m, BX 559.00
QR200-7-UV-VIS Premium 200 µm Reflection Probe, UV/VIS, 2 m 631.00
RP200-7-UV-VIS 200 µm Reflection Probe, UV/VIS, PEEK ferrule, 2 m 1,398.00
R400-7-UV-VIS 400 µm Reflection Probe, UV/VIS, 2 m 699.00
QR400-7-UV-BX Premium 400 µm Reflection Probe, UV/VIS, 2 m, BX Jacket 769.00
QR400-7-UV-VIS Premium 400 µm Reflection Probe, UV/VIS, 2 m 908.00
R600-7-UV-125F 600 µm Reflection Probe, UV/VIS, 1/8" ferrule, 2 m 1,952.00

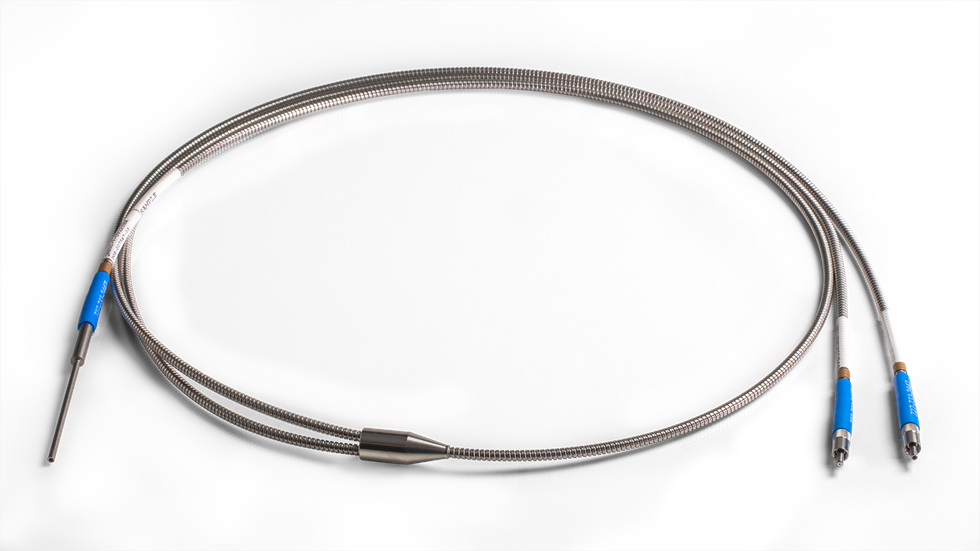

QR600-7-UV125BX Prem. 600 µm Refl. Probe, UV/VIS, 1/8" ferrule, BX Jacket 2,510.00
QR600-7-UV-125F Premium 600 µm Refl. Probe, UV/VIS, 1/8" ferrule, 2 m 1,187.00
Visible-NIR Reflection/Backscatter Probes
R200-7-VIS-NIR 200 µm Reflection Probe, VIS/NIR, 2 m  $559.00
QR200-7-VIS-BX Premium 200 µm Refl. Probe, VIS/NIR, 2 m, BX 631.00
QR200-7-VIS-NIR Premium 200 µm Reflection Probe, VIS/NIR, 2 m 631.00
R400-7-VIS-NIR 400 µm Reflection Probe, VIS/NIR, 2 m 699.00

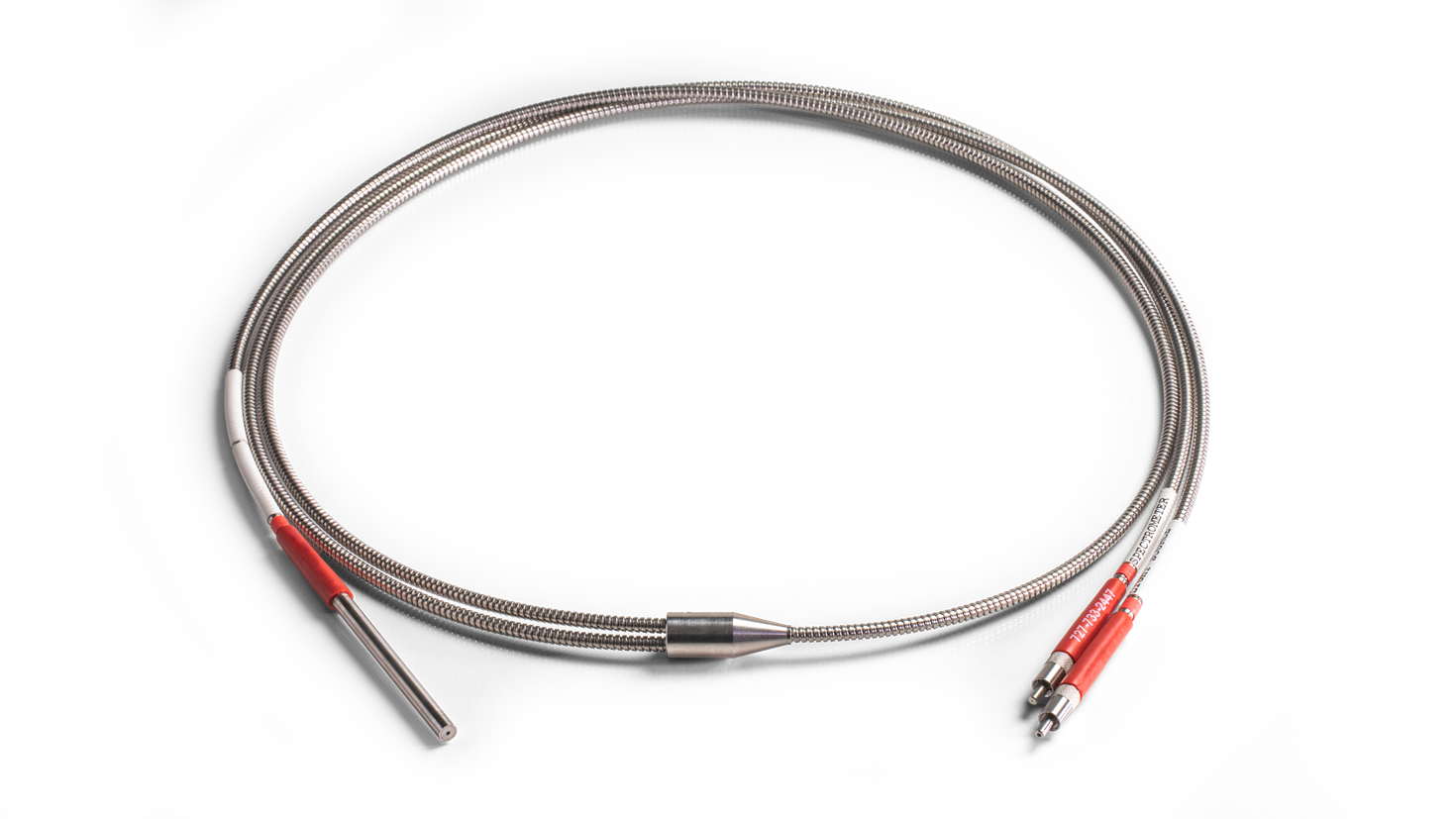

QR400-7-VIS-BX Premium 400 µm Reflection Probe, VIS/NIR, 2 m, BX Jacket 769.00
QR400-7-VIS-NIR Premium 400 µm Reflection Probe, VIS/NIR, 2 m 908.00
R600-7-VIS-125F 600 µm Reflection Probe, VIS/NIR, 1/8" ferrule, 2 m 976.00
QR600-7-VIS125BX Prem. 600 µm Refl. Probe, VIS/NIR, 1/8" ferrule, BX Jacket 1,255.00
QR600-7-VIS-125F Premium 600 µm Refl. Probe, VIS/NIR, 1/8" ferrule, 2 m 1,187.00
NANOQ-RPROBE-600-VIS-NIR NanoQuest Reflection probe, Premium 600 µm Reflection Probe, VIS/NIR, 2 m, FC-SMA 1,152.00
UV-Visible Reflection Probes with Reference Leg
R200-REF-UV-VIS 200 µm Reflection Probe, UV/VIS, 2 m, reference leg  $1,538.00
QR200-REF-UV-VIS Premium 200 µm Refl. Probe, UV/VIS, 2 m, reference leg 769.00
Visible-NIR Reflection Probes with Reference Leg
QR200-REF-VIS-NIR Premium 200 µm Refl. Probe, VIS/NIR, 2 m, reference leg  $1,538.00
Mixed UV-Vis & Vis-NIR Reflection/Backscatter Probes
R200-12-MIXED 200 µm Reflection Probe, MIXED, 2 m  $1,047.00
QR200-12-MIXED Premium 200 µm Reflection Probe, MIXED, 2 m 1,047.00
Angled UV-Visible Reflection/Backscatter Probes
R200-ANGLE-UV 200 µm Reflection Probe, UV/VIS, 2 m, 30 deg. window  $1,398.00
QR200-ANGLE-UV Premium 200 µm Refl. Probe, UV/VIS, 2 m, 30 deg. window 1,674.00
R400-ANGLE-UV 400 µm Reflection Probe, UV/VIS, 2 m, 30 deg. window 1,674.00
QR200-ANGLE-VIS Premium 200 µm Refl. Probe, VIS/NIR, 2 m, 30 deg. window 1,674.00
Angled Visible-NIR Reflection/Backscatter Probes
QR400-ANGLE-VIS Premium 400 µm Refl. Probe, VIS/NIR, 2 m, 30 deg. window  $2,094.00
Integrated Light Source Reflection/Backscatter Probes
TC-DR-PROBE 45° diffuse reflectance probe with inbuilt halogen source.
Power Supply included (900-40000-296) and accessories and reflectance standard		  $1,802.00
General Purpose Raman Probes
RIP-RPB-532-FC-SMA Raman coupled fiber probe for 532 nm with FC Excitation-SMA Collection  $3,388.00
RIP-RPS-532-FC-SMA Raman coupled focused probe for 532 nm with FC Excitation-SMA Collection 12,540.00
RIP-RPB-532-SMA-SMA Raman coupled fiber probe for 532 nm with SMA connectors on both fibers 3,388.00
RIP-RPS-532-SMA-SMA RamanProbe at-line fiber optic probe for use at 532 nm excitation with 5 mm working distance, SMA/SMA 12,540.00
RIP-RPB-638-FC-APC-SMA 638nm Raman probe with FC-APC connector for laser and SMA connector to spectrometer 4,347.00
RIP-RPB-785-FC-SMA Raman coupled fiber probe for 785 nm with FC Excitation -SMA Collection; 7.5 mm working distance 3,490.00
RIP-RPS-785-FC-SMA Focused Probe, 12.7 mm OD, laser wavelength 785 nm, FC Excitation-SMA Collection 12,656.00
RIP-RPB-785-SMA-FC Raman coupled fiber probe for 785 nm with SMA Excitation -FC Collection; 7.5 mm working distance 6,980.00
RIP-RPB-785-SMA-SMA Raman coupled fiber probe for 785 nm with SMA-SMA connectors on both fibers; 7.5 mm working distance 3,490.00
RIP-RPB-1064-SMA-SMA Raman Fiber Coupled Probe for 1064nm with SMA connectors 7,124.00
RIP-RPB-1064-FC Raman Fiber Coupled Probe for 1064nm with FC connector 3,780.00
Immersion Raman Probes
RIP-RP2-785-SMA-FC Immersion Probe, 15.87 mm OD, laser wavelength 785 nm; FC excitation, SMA emission  $16,420.00
General Purpose Transmission Dip Probes
T200-RT-VIS-NIR 200-micron Transmission Dip Probe, RT tip required  $1,048.00
T300-RT-UV-VIS 300-micron Transmission Dip Probe, RT tip required 1,048.00
T300-RT-VIS-NIR 300-micron Transmission Dip Probe, RT tip required 1,048.00
Harsh Environment Transmission Dip Probes
TP300-UV-VIS 300-micron Transmission Dip Probe, UV, PEEK sleeve  $1,048.00
TP300-VIS-NIR 300-micron Transmission Dip Probe, VIS, PEEK sleeve 1,048.00
Ruggedized Transmission Dip Probes
TI300-UV-VIS 1/2-inch OD process transmission dip probe; UV/VIS  $1,813.00
Transmission Dip Probe Tips
RT-2MM 2-mm Path Tip for 1/4" SS Transmission Dip Probe  $339.00
RT-5MM 5-mm Path Tip for 1/4" SS Transmission Dip Probe 339.00

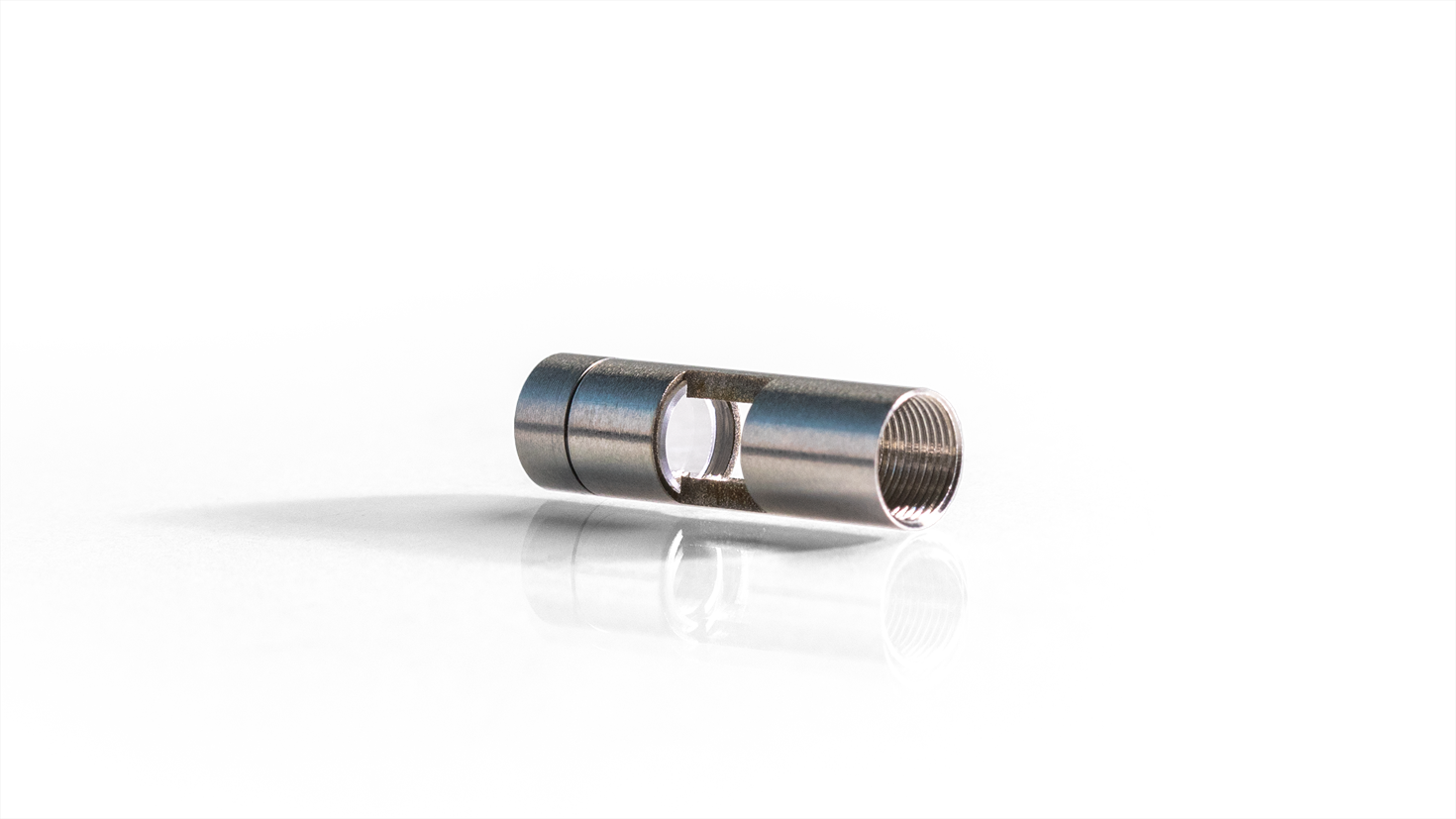

RT-10MM 10-mm Path Tip for 1/4" SS Transmission Dip Probe 339.00
RTP-2-10 Adjustable path (2-10 mm) PEEK tip for TP300-UV/VIS 337.00
RTP-10-20 Adjustable path (10-20 mm) PEEK tip for TP300-UV/VIS 337.00
RT-TI-2MM 2-mm pathlength tip for TI300-series Dip Probes 421.00
RT-TI-5MM 5-mm pathlength tip for TI300-series Dip Probes 421.00
RT-TI-10MM 10-mm pathlength tip for TI300-series Dip Probes 421.00
RT-TI-25MM 25-mm pathlength tip for TI300-series Dip Probes 421.00
RT-TI-50MM 50-mm pathlength tip for TI300-series Dip Probes 421.00
Analytical Probes
PRO-PROBE-ATR Attenuated Total Reflection Probe for indirect absorbance  $9,071.00
PRO-PROBE-SPP Single pass transmission probe 9,645.00

Prices are in US dollars - Prices subject to change without notice - Products are FOB Ancal, California
