CHEM4 Systems for Education

The Ocean Insights’ CHEM-4 series of Spectrometers for Education are computer based spectrometer systems that are fully integrated teaching tools. All the CHEM-4 series systems include a basic spectrometer, a light source and a cuvette holder. These systems are fully configured spectrometers which are able to acquire and display real time transmittance and absorbance spectral data (3648 wavelength points) in less than one second.

Chem4 Series

Series Wavelength Range Optical Resolution Light Source
CHEM4-UV-VIS 200 - 1100 nm ~1.0 nm FWHM Deuterium tungsten
CHEM4-VIS-NIR 200 - 1100 nm ~1.0 nm FWHM Tungsten & LED
*attached to cuvette holder by 2 meter long fiber optic cable (supplied)

CHEM4 Features

  • Fully integrated, preconfigured spectrophotometer
  • Able to see small differences in Absorbance Units
  • Direct-attach light source or fiber optic cable attach with sample holder
  • Small-footprint spectrophotometer system ideal for the laboratory and the classoom
  • USB interface for fast, straight-forward spectrophotometer-to-computer connection

Basic spectrometer

All CHEMUSB4-UV/VIS spectrophotometers use the OceanOptics’ USB4000 Spectrometer. The USB4000 features an onboard programmable microcontroller that provides you considerable flexibility in conttrolling the spectrometer and accessories. Through a 22-pin connector, all operating parameters can be controlled via the software. Processes can be created and information on external objects can be retrieved. Plus, there is access to 8 user-programmable digital Inputs/Outputs for interfacing to other equipment.

Set-up

The CHEMUSB4-UV/VIS Interfaces to a computer, a PLC or other embedded controller, via USB 2.0 or RS-232 serial port. When using the serial port, the system requires a single 5-vold power supply (not included). For easy set-up, data unique to each spectrometer is programmed into a memory chip on the particular USB4000, the spectrp,eter operating software reads these values for easy setup and for hot swapping among computers.

Not that the Ocean Insights “SpectraSuite” software is suggested for the operating software. SpectraSuite is a modular, Java-based spectoscopy software platform that operates on Windows, Macintosh and Linux operating systems, and includes modules for irradiance and color measurement. Please note that SpectraSoft does not support spectrometer operation via the serial port.

Prices

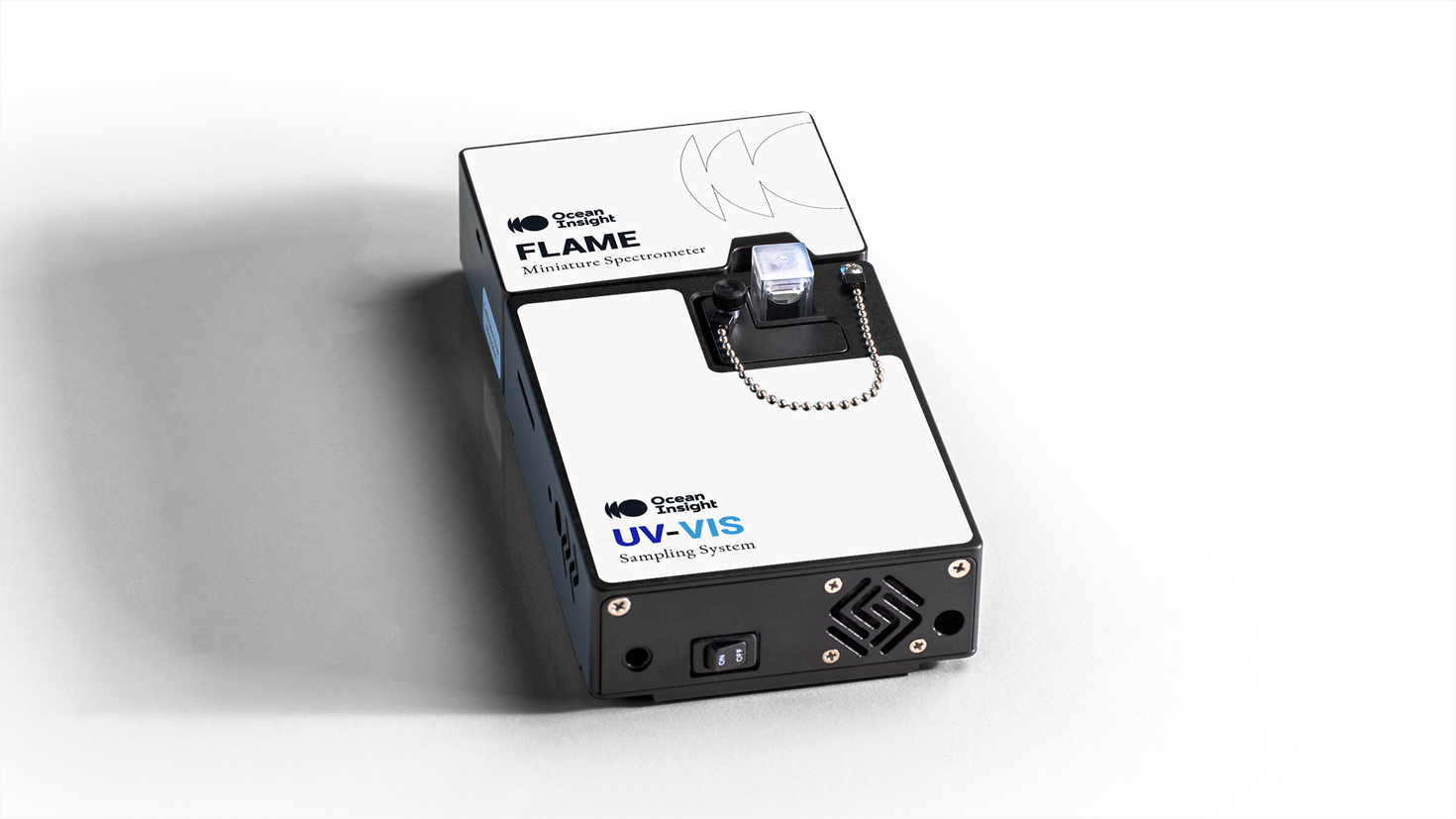

Flame Spectrometer Systems
CHEMUSB4-UV-VIS UV-VIS Spectrophotometer, 200-850 nm, direct-attach system  $6,615.00
CHEMUSB4-VIS-NIR VIS-NIR Spectrophotometer, 400-950 nm, direct-attach system 4,963.00
OceanView 2.0 Software
OCEANVIEW OceanView spectroscopy software with graphical user interface;
1 license (2 installations, accessible by download from secure servers)		  $243.00

Prices are in US dollars - Prices subject to change without notice - Products are FOB Ancal, California

Order

To order, you may email an order to info@ancal.com, you may fax Ancal an order to 602-532-7018. or use the form below.

As an authorized distrutor of Ocean Insights products, Ancal can process orders for most items manufactured by Ocean Insights. Ocean Insights items may be shipped from Ancal or may be shipped directly from Ocean Insights.

Please be aware that in some cases, such as in sales to new customers or for special items, pre-payment may be required.
